NCA

Product Name

NCA

High capacity and high energy-density type. Available in smaller particle size (1μ～).

【Main Feature】

NCA is adopted as a positive electrode material excellent in high capacity and high energy density in various battery fields such as electric tools and EV. It is a promising material for prolonging EV mileage with increased capacity by using nickel which is more economical than cobalt.

【Application】

■Electric Tools
■E-bike
■Electric Vehicle(EV、HV、PHV)

【Phisical Properties】

Grade	Nickel Content	Discharge Capacity (mAh/g)	PD, g/cc	Lifetime Property @50th, %	Remarks
NCA	81%	201	About 3.5	91	In production
	87%	211		90
	90%	213		85
	93%	217		78	Under evaluation

※The above values are representative measurements of the material, not the lowest value of specification.

【SEM Image】

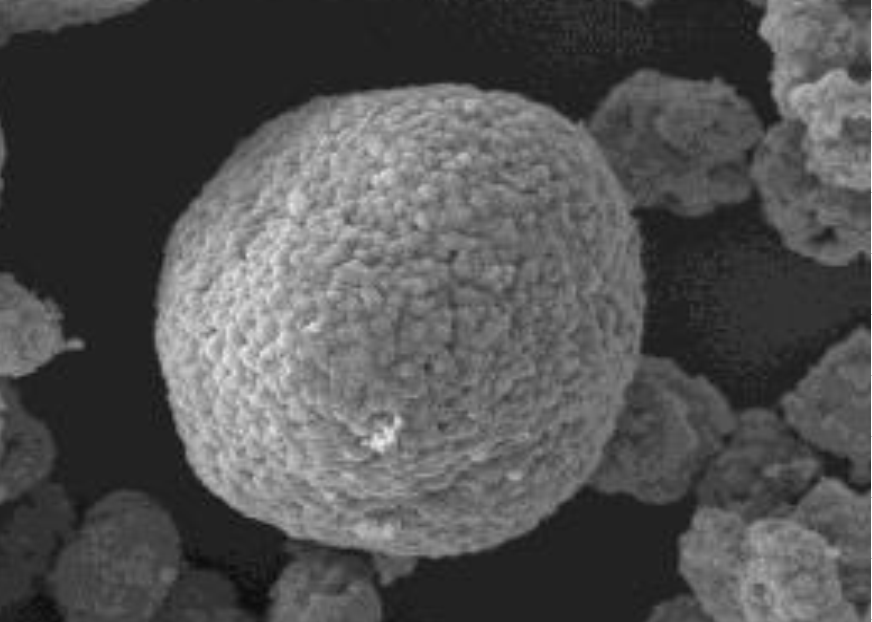

x 10,000

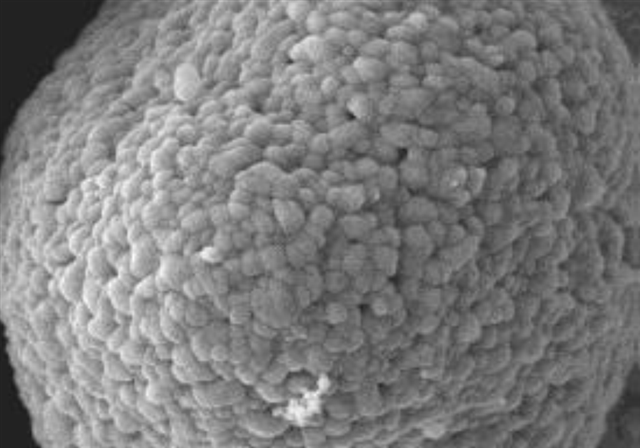

x 20,000
