Charge/Discharge Evaluation Device (Cycler)
Product Name
Charge/Discharge Evaluation Device (Cycler)
It is a device that evaluates the life characteristics of cells, and is also an indispensable device for cell design. We can also provide a single unit according to the specifications required by each customer.
【Detailed Explanation】
A device that can evaluate the life characteristics of battery cells under various temperature and humidity environments. It is a precision evaluation device indispensable for battery design, not only for battery manufacturers, but also for battery material manufacturers and automobile manufacturers. We handle devices from Japanese and Korean manufacturers, and we can customize them to meet the needs of our customers.

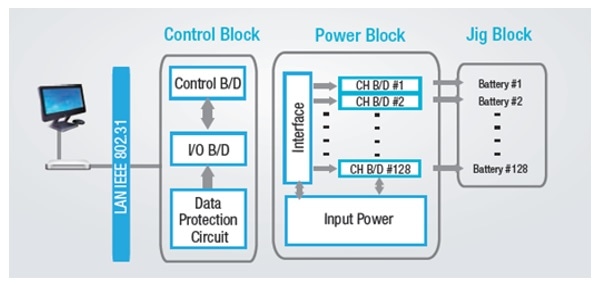

【Device Configuration】

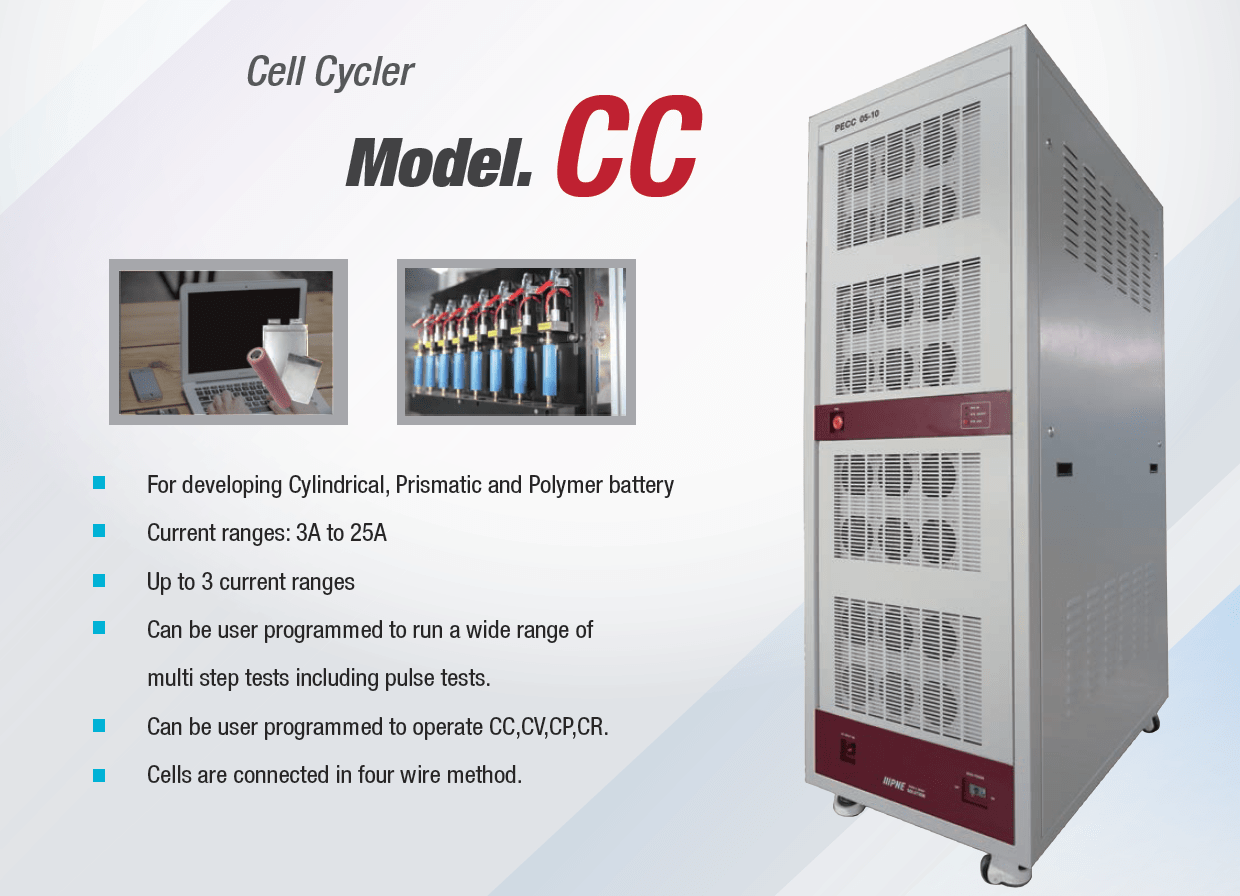

【Cycler Lineup】
| Model | Voltage | Current | Number of CHs | Size(WDH, mm) |
|---|---|---|---|---|
| PECC05-03 | 0~5V | 3/１/0.3A |
128 |
600×1200×2000 |
| PECC05-06 | 0~5V | 6/3/1A | 128 | 600×1200×2000 |
| PECC05-10 | 0~5V | 10/5/1A | 128 | 600×1200×2000 |
| PECC05-20 | 0~5V | 20/10/2A | 64 | 800×1200×2000 |
| PECC05-30 | 0~5V | 25/15/3A | 64 | 800×1200×2000 |
【Lineup of All-Battery Charging/Discharging Equipment】
| Model | SC | CC | HCC | BC | BRC | HBC | MC | MRC |
|---|---|---|---|---|---|---|---|---|
| Application | Coin cell, material examination | Cell |
Cell |
High output | High output | High output | Module | Module |
| Type | Fast charge | Play | Fast charge | Play | ||||
| Voltage Range | Up to 5V | Up to 5V | Up to 5V | Up to 5V | Up to 5V | Up to 5V | 10～100V | 10~150V |
| Voltage Range | Up to 1A | Up to 25A | Up to 25A | Up to 1000A | Up to 1000A | Up to 1000A | Up to 300A | Up to 300A |
【Specification】
| Item | Specification | |
|---|---|---|
| Interface | IEEE802.3(LAN) | |
| Control mode | CC, CV,CP, CR | |
| PC software | CTS_PRO series | |
| Voltage | Accuracy | ±0.05%F.S |
| Resolution | 16Bit | |
| Current | Accuracy | ±0.1% |
| Resolution | 16Bit | |
| Number of current ranges | Max. 3 ranges | |
| Control interval | 100/1000ms | |
| Current rising time | <10ms | |
| Input voltage | 3-phase220V、50/60Hz | |
Contact: Mobility Materials Equipment, Tokyo(03-3546-3361)
