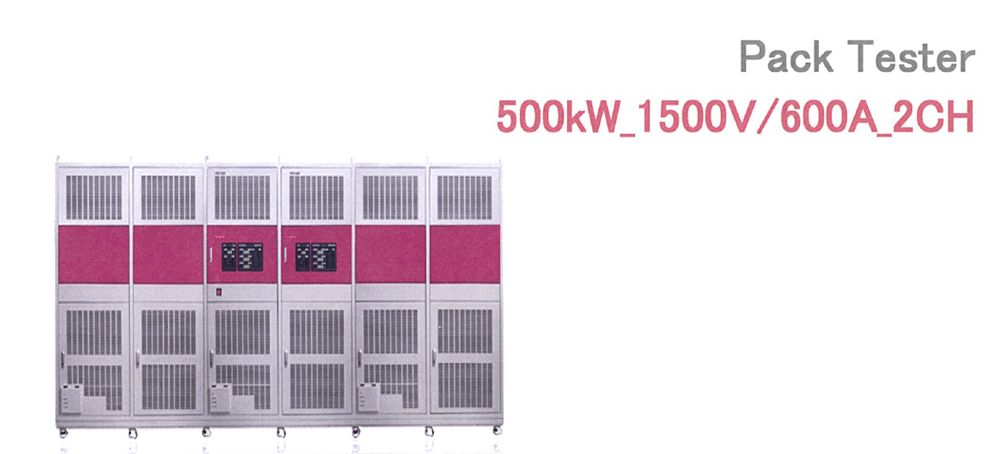

Pack Tester
Product Name
Pack Tester
This equipment evaluates the life characteristics of packs that combine tens to thousands of cells according to the application. We can also provide a single unit according to the specifications required by each customer.
【Detailed Description】
It is optimized for single cells (Li-ion, NiCd, Lead-Acid, EDLC) and can test all batteries with charge voltage less than 5V.
Parallel configuration is possible depending on the current range, and various step tests including pulse tests are possible.
【Product Features】
- ・For testing medium and large batteries for electric vehicles and electric motorcycles
- ・Control mode: CV, CC, CP, CR, CCP, CPCV, Simulation
- ・Current range: 30 to 1,000A
- ・Interface: IEEE802.3 (LAN)
- ・Voltage measurement accuracy : ±0.05%F.S
- ・Current Resolution: 16bit
- ・Current measurement accuracy: ±0.1%
- ・Voltage Resolution: 16bit
- ・Up to 4 current settings
- ・Control interval: 100ms (Option: 10ms)
- ・Current Rising Time: <5ms
- ・Input power supply : 3-phase 220Vac50/60Hz
【Product Specifications】
| Model name | Voltage(V) | Current(A) | Maximum number of channels | Product dimensions |
|---|---|---|---|---|
| PEBC 05-30 | 0～5 | 30/15/3/1 | 32 | 800*1200*2000 |
| PEBC 05-50 | 0～5 | 50/25/5/1 | 32 | 800*1200*2000 |
| PEBC 05-100 | 0～5 | 100/50/10/1 | 32 | 800*1400*2000 |
| PEBC 05-120 | 0～5 | 120/60/12/2 | 16 | 800*1200*2000 |
| PEBC 05-150 | 0～5 | 150/75/15/2 | 16 | 800*1400*2000 |
| PEBC 05-200 | 0～5 | 200/100/20/10 | 16 | 1000*1500*2000 |
| PEBC 05-250 | 0～5 | 250/125/25/10 | 16 | 800*1400*2100 |
| PEBC 05-300 | 0～5 | 300/150/30/10 | 16 | 1000*1500*2100 |
| PEBC 05-400 | 0～5 | 400/200/40/10 | 8 | 800*1400*2000 |
| PEBC 05-500 | 0～5 | 500/250/50/10 | 8 | 1000*1500*2100 |
| PEBC 05-600 | 0～5 | 600/300/60/10 | 8 | 1000*1500*2100 |
| PEBC 05-1000 | 0～5 | 1000/500/100/10 | 4 | 1000*1500*2100 |
Contact: Mobility MaterialsEquipment, Tokyo(03-3546-3361)
