Battery Assembly Equipment
Product Name
Battery Assembly Equipment
Battery materials such as electrode plates (positive and negative electrodes), separation membranes, and electrolytes are placed in cases (cylindrical, square, pouch) and assembled into various forms of battery cells.
Detailed Explanation
We have a track record of delivering to major battery manufacturers for several years on assembly lines for all types of batteries, including cylindrical, square, and pouch (laminate) batteries. It also supports batteries. We also offer customized products that meet diverse customer needs.

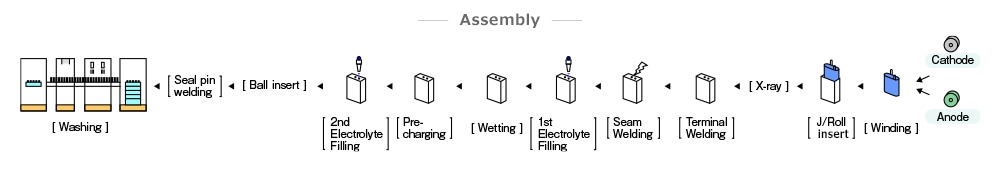

Overview of the Assembly Line
Main Assembly Line Configuration
| 1)Winding machine | Create a Jelly Roll by rolling the positive electrode, negative electrode, and separation membrane. |
|---|---|
| 2)Inserting machine | Insert the Jelly Roll into the case. |
| 3)Welder | Weld electrode and lid (bottom, top). |
| 4)Electrolyte injection machine | Electrolyte is injected into the welded battery. |
Actual Example (Cylindrical)
Product Specifications: Cells/Min
| TYPE | Available Capacity(Cells/Min) |
|---|---|
| 18650 | 150,200,220,300 |
| 21700 | 150,200,220,301 |
| Other | Customization |
Line Area：6200cm×450cm250cm
Required Electric Powder：140kW
Vacuum：8m2/Min
Compressed Air：4m2/Min
Contact: Mobility Materials Equipment, Tokyo(03-3546-3361)
